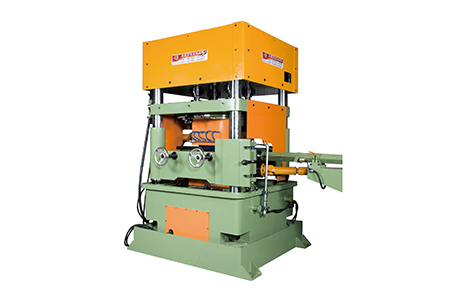

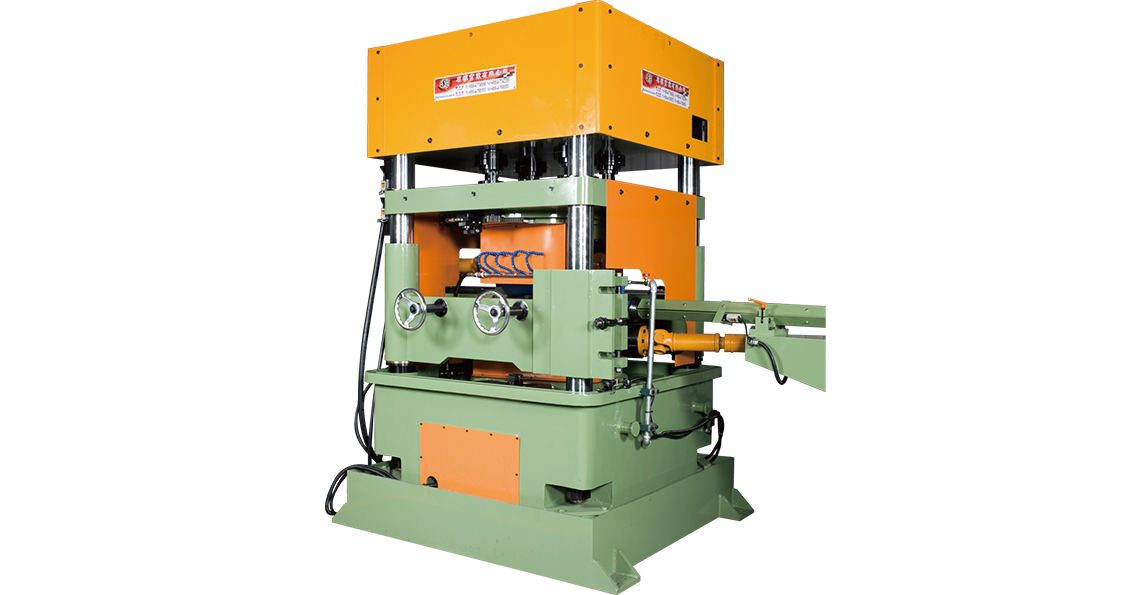

TWO ROLL STRAIGHTENING MACHINE

This machine is equipped with one concave an one convex roller.
The bar pass through two rollers can get the straightness and polish efficiency.
Moreover ,this machine equip the MMI ( touch monitor ) to set the parameter and can have the memory setting for different bar size.

  • Type Bar diameter ( mm ) Pipe diameter ( mm ) Motive power ( kw ) Speed ( m / min )
    RK - 0 ∮ 4 ~ ∮ 10 ∮ 4 ~ ∮ 10 5 kw x 2 台 30 ~ 60
    RK - 1 ∮ 8 ~ ∮ 25 ∮ 8 ~ ∮ 18 10 kw x 2 台 30 ~ 45
    RK - 2 ∮ 18 ~ ∮ 35 ∮ 23 ~ ∮ 53 15 kw x 2 台 15 ~ 45
    RK - 3 ∮ 20 ~ ∮ 55 ∮ 30 ~ ∮ 83 35 kw x 2 台 15 ~ 45
    RK - 6 ∮ 40 ~ ∮ 100 ∮ 60 ~ ∮ 150 75 kw x 2 台 15 ~ 30
